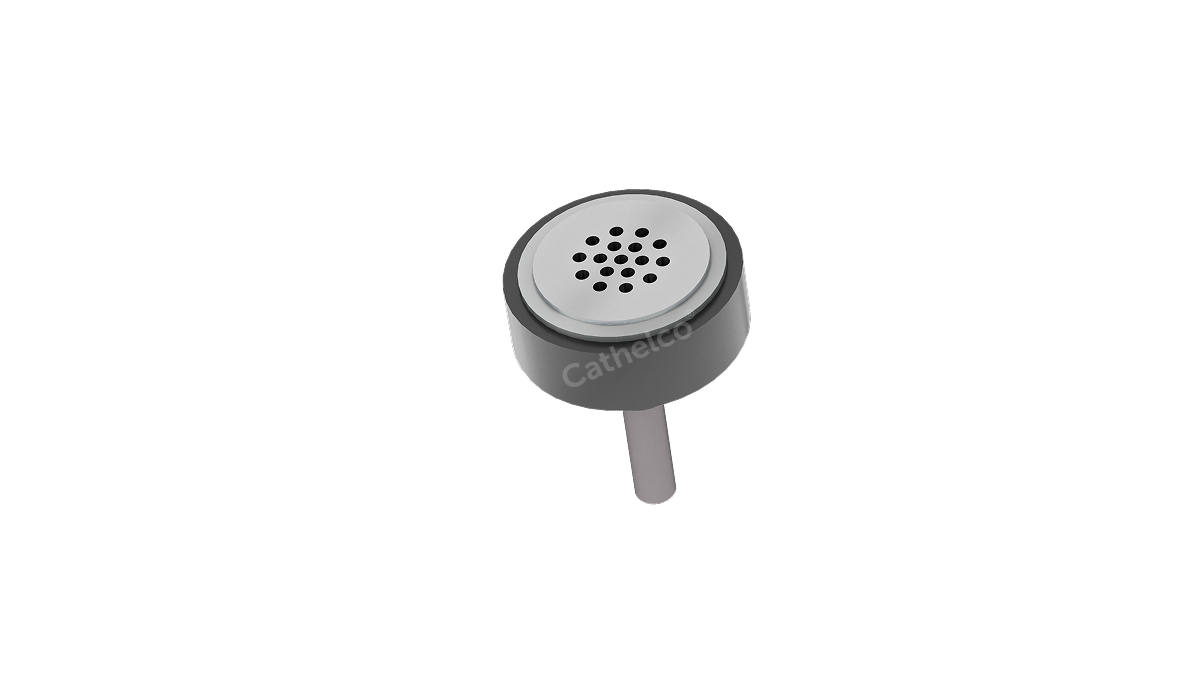

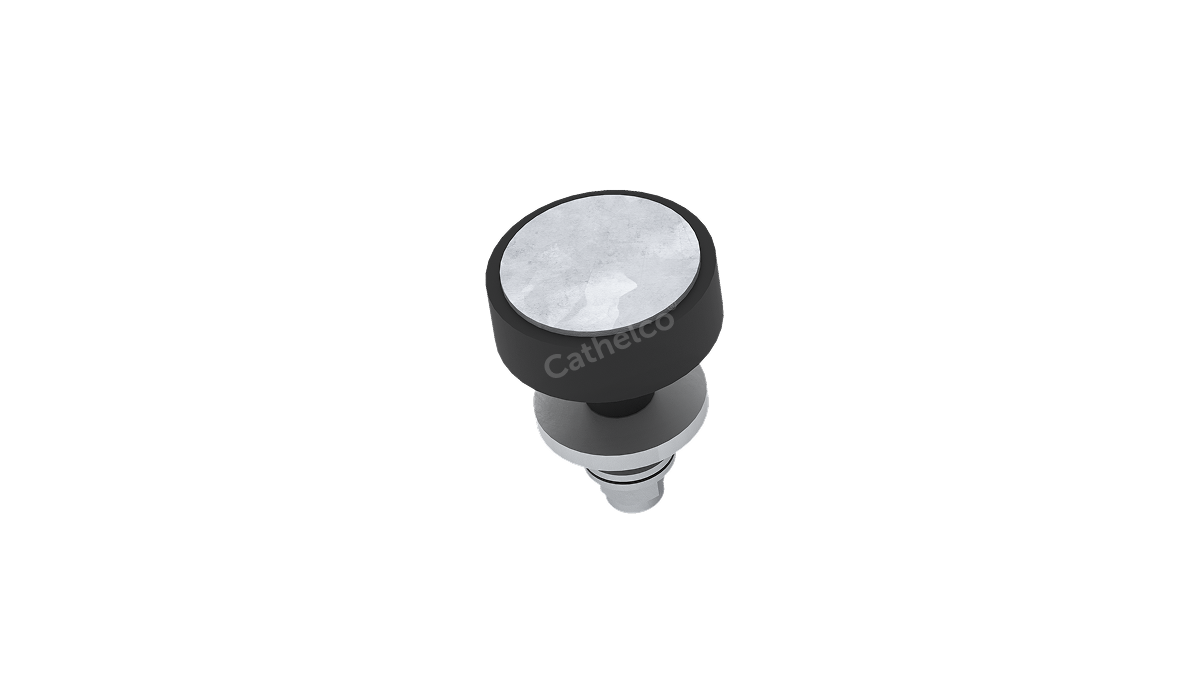

Cathelco® ICCP Reference Electrodes
- Zinc or Silver/Silver Chloride (Ag/AgCl) sensing elements
- Fully diver-changeable design
- Watertight rubber holder with integrated seals
Cathelco® reference electrodes provide highly reliable, long-term performance for monitoring hull potential in Impressed Current Cathodic Protection (ICCP) systems.
- Ensures ICCP systems deliver effective corrosion protection.
- Diver-changeable design enables maintenance at sea, keeping systems operational and avoiding the massive costs and disruption of unplanned drydockings.
- Electrode Diameter: 68mm
- Electrode Weight: 0.6kg (9kg including cofferdam)
- Holder: Rubber housing with integrated seals
- Material Options: Zinc or Silver/Silver Chloride
To ensure the hull remains within the ideal protection range reference electrodes measure the potential of the steel/seawater interface against a known reliable reference, this can be in the form of a Zinc or Silver/ Silver Chloride reference electrode. This measured value is then compared to a preset set point within the control panel to determine if ideal protection is being achieved and how much current is needed to protect the structure.
Cathelco ICCP Quantum Panel
- A thyristor system housed in different-sized cabinets
- Low maintenance
- Automatic data logging

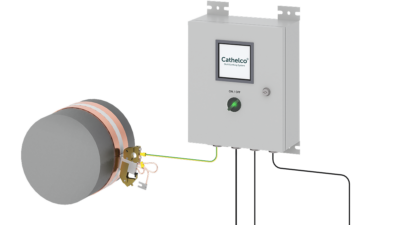

Cathelco Shaft Earthing systems
- Complete shaft earthing assemblies
- An optimum level of performance
- Low maintenance need
Cathelco® ICCP Thruster Tunnel System
- Uniquely effective in providing corrosion protection
- Greener solution to sacrificial anodes
- Lifetime warranty
Evac Lifecycle Management
For all our systems and solutions, we offer a comprehensive portfolio of services throughout the operational life of the delivered solution or equipment.
