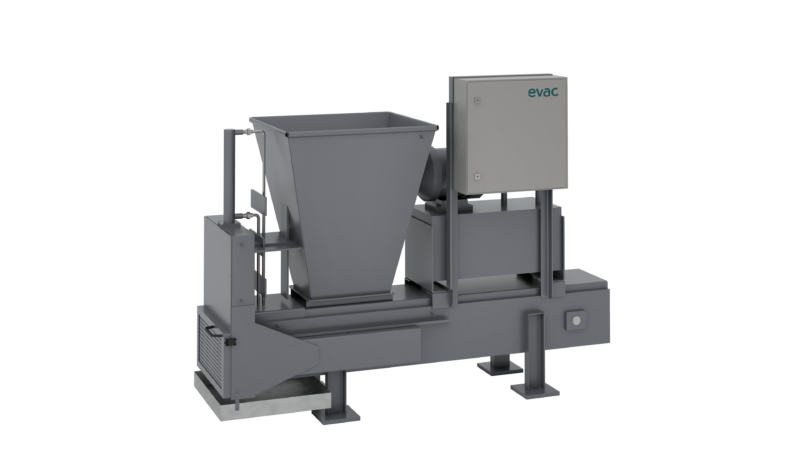

DD-10P and DD-20P tin densifiers
DD-10P and DD-20P are tin densifiers used for tins and cans. The unit provides a significant volume reduction by compacting the materials into bales. The bales keep their form after the processing and are easy to transport around on pallets. Small footprint and small bales are easy to handle also in small garbage rooms / areas.
- Provides a significant volume reduction
- More efficient logistics due to reduced volume
- Small footprint
More efficient logistics due to reduced volume
- Chamber Size 335 x 330 x 700
- Press force 14 tons
- Length approx. 480mm
- Height approx. 1.900mm
- Width approx. 730 mm
- El. load 4 kW
- Weight approx. 470 kg
- Chamber Size 0.04 m3
- Press force 30 tons
- Length approx. 2.230 mm
- Height approx. 1.720 mm
- Width approx. 790 mm
- El. load 4,5 kW / IP 54
- Height 1.720 mm
- Weight approx. 1.400 kg
- Capacity 75 kg / h
The densifier is manually operated. The user will fill the chamberwith the cans to be compacted. After the chamber is full the operator presses the button starting the cycle.
The cylinders are generating a power pressing the compaction element towards the cans. This will remove the air / empty space from the product matrix and deforms the solid material to forced shape. After the compaction cycle more material can be fed in. The cycle is repeated until the untill the bale is ready and discharged.
