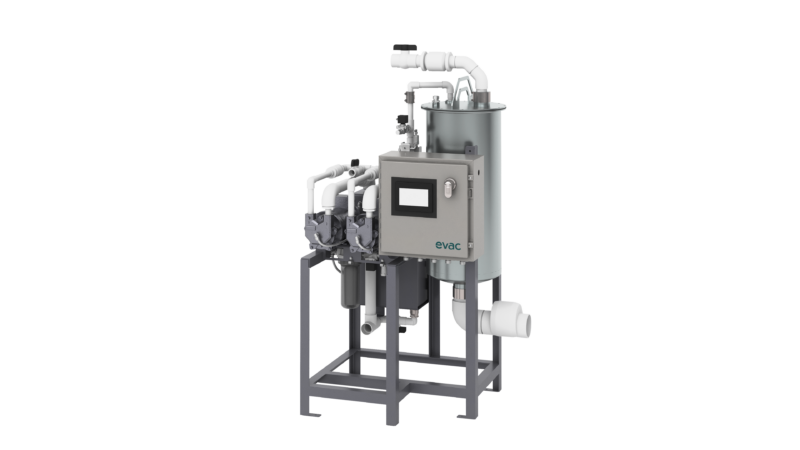

Evac Horizon Junior vacuum collection unit

The Evac Horizon Junior vacuum collection unit is designed for use in supermarkets for the collection, transportation, and discharge of condensates and other gray wastewater.

  • For grey and condensate water
  • Available in the North America market
  • High reliability with low maintenance requirements

  • Small footprint
  • High reliability with low maintenance requirements
  • Quiet operation

The system comprises

  • Two liquid-ring vacuum pumps with rotary displacement
  • Wastewater collection tank 30 gallon /113.6 liter
  • Vacuum control solenoid valves
  • Control panel

The vacuum system significantly reduces, or even eliminates, the need for underfloor drainage in the sales area. The vacuum collection unit supplies and maintains vacuum pressure in the system piping, receives the collected wastewater, and discharges it into the building’s sewer system. The liquid-ring vacuum pumps generate a vacuum by forming a sealing ring of water. The vacuum collection unit uses a fresh water connection in series with a water reservoir to supply the liquid-ring pump with the correct amount of sealing fluids.
